Bottle Filling Packaging Line

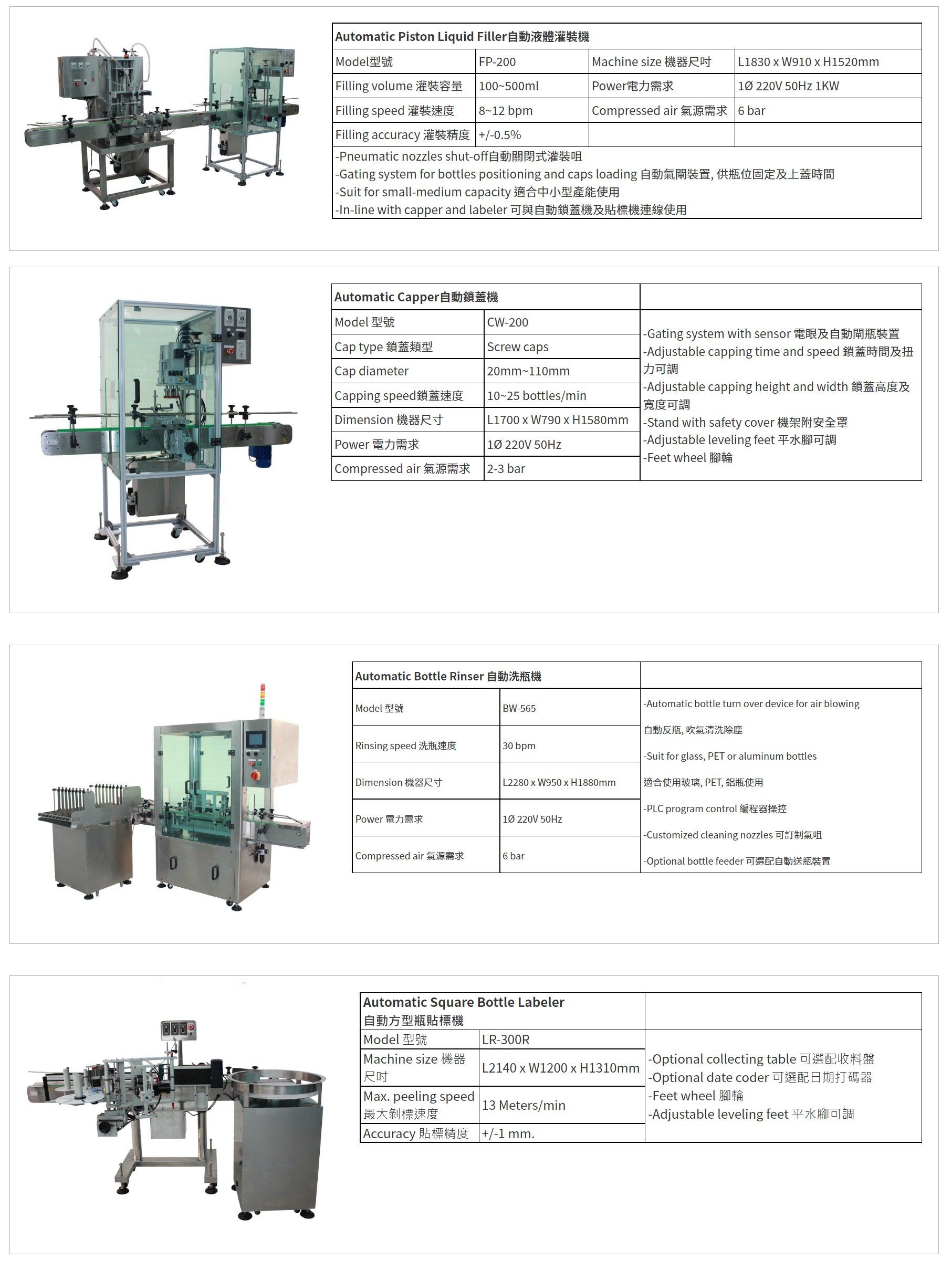

Bottle Packaging Solution - Bottle Rinser-Filling-Capping-Labeling
瓶形包裝方案 - 洗瓶-灌裝-鎖蓋-貼標
瓶形包裝方案 - 洗瓶-灌裝-鎖蓋-貼標
|
| |||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
-Gating system for bottles positioning and caps loading 自動氣閘裝置, 供瓶位固定及上蓋時間 -Suit for small-medium capacity 適合中小型產能使用 -In-line with capper and labeler 可與自動鎖蓋機及貼標機連線使用 | |||
|
|
| |
|
|
|
-Adjustable capping time and speed 鎖蓋時間及扭力可調 -Adjustable capping height and width 鎖蓋高度及寬度可調 -Stand with safety cover 機架附安全罩 -Adjustable leveling feet 平水腳可調 -Feet wheel 腳輪 |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
| Automatic Bottle Rinser 自動洗瓶機 | ||
| Model 型號 | BW-565 |
-Automatic bottle turn over device for air blowing 自動反瓶, 吹氣清洗除塵 -Suit for glass, PET or aluminum bottles 適合使用玻璃, PET, 鋁瓶使用 -PLC program control 編程器操控 -Customized cleaning nozzles 可訂制氣咀 -Optional bottle feeder 可選配自動送瓶裝置 |
| Rinsing speed 洗瓶速度 | 30 bpm | |
| Dimension 機器尺寸 | L2280 x W950 x H1880mm | |
| Power 電力需求 | 1Ø 220V 50Hz | |
| Compressed air 氣源需求 | 6 bar | |
|
Automatic Square Bottle Labeler 自動方型瓶貼標機 | ||
| Model 型號 | LR-300R |
-Optional collecting table 可選配收料盤 -Optional date coder 可選配日期打碼器 -Feet wheel 腳輪 -Adjustable leveling feet 平水腳可調 |
| Machine size 機器尺吋 | L2140 x W1200 x H1310mm | |
|
Max. peeling speed 最大剝標速度 | 13 Meters/min | |
| Accuracy 貼標精度 | +/-1 mm. | |
